How They Work

.

INSTRUCTIONS FOR USE ( 3 EASY STEPS)

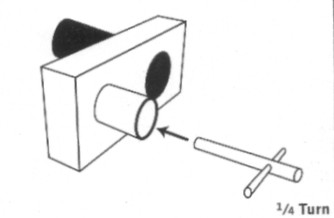

(1) To Unlock Put Key In Lock & Rotate 1/4 turn

work 1.jpg (8869 bytes)

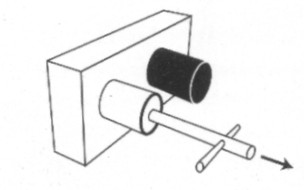

(2) Bar Shoots Back & Releases Paddle Mechanism. Remove Key And Wind Paddle Up As Normal

work 2.jpg (8586 bytes)

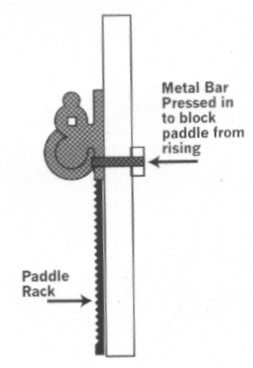

(3) Lower Paddle And Pres Metal Bar Back In

 work 3.jpg (6489 bytes)







. . .



.

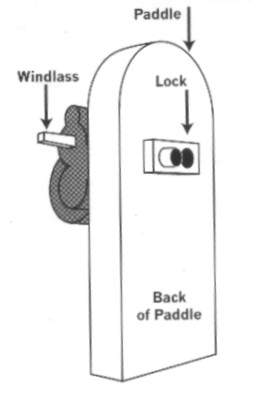

Our canal locks have been specially designed to stop vandals from flooding our canal locks and waterways.

The Lock Is fitted to Canal gates and can only be unlocked using the special keys supplied.

The outer casing is completely closed with special high security screws and can only be opened

 (for servicing purposes) with the special driver tools supplied.





These locks have been fitted by British Waterways in many areas with great success !!

See onsite image gallery click here





paddle 1.jpg (11660 bytes)   paddle 3.jpg (11973 bytes)   paddle 2.jpg (7722 bytes)
