Solid Handwheel

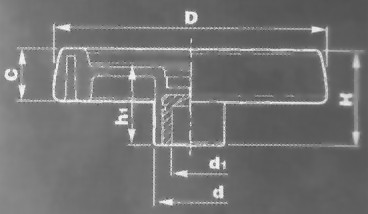

solid handwheel design.jpg (14066 bytes)

solid handwheel.jpg (8639 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D H h1 d C
G34-80 80 33 29 24 17
G34-100 100 39 34 30 21
G34-125 125 44 37 36 24
G34-150 150 53 43 38 29
G34-175 175 56 46 40 32
G34-200 200 59 49 44 34
G34-250 250 65 56 60 38
d1 Bore size by request
