Solid Handwheel With Revolving Folding Side Handle

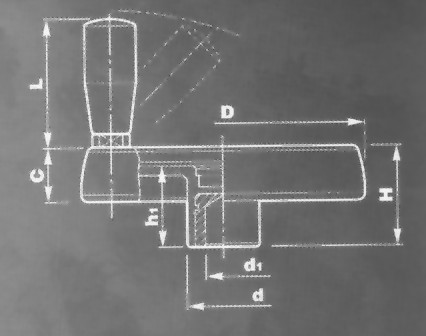

solid handwheel with revolving folding side handle design.jpg (23043 bytes)

solid handwheel with revolving folding side handle.jpg (12993 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D H h1 d C L
G36-80 80 33 29 24 17 55
G36-100 100 39 34 30 21 55
G36-125 125 44 37 36 24 76
G36-150 150 53 43 38 29 96
G36-175 175 56 46 40 32 96
G36-200 200 59 49 44 34 96
G36-250 250 65 56 60 38 96
d1 Bore size by request
