Solid Handwheel With Revolving Foldaway Side Handle

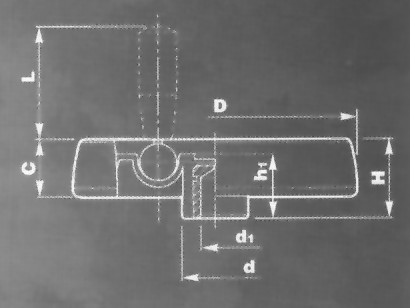

solid handwheel with revolving foldaway side handle design.jpg (19249 bytes)

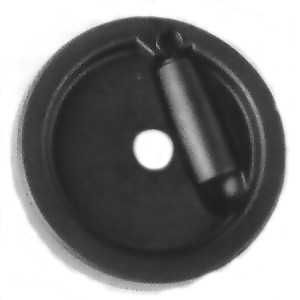

solid handwheel with revolving foldaway side handle.jpg (12525 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D H h1 d C L
G37-125 125 47 40 36 27 58
G37-150 150 53 44 38 28 60
G37-175 175 58 48 40 33 80
G37-200 200 63 53 44 38 90
G37-250 250 66 56 60 38 90
d1 Bore size by request
