Solid Handwheel With Revolving Fixed Side Handle

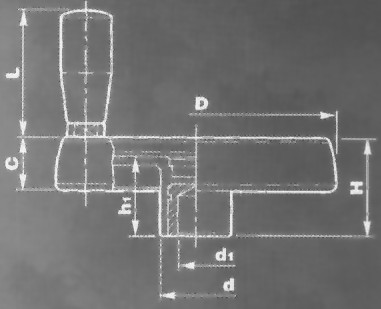

solid handwheel with revolving fixed side handle design.jpg (19751 bytes)

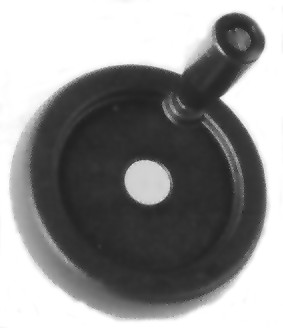

solid handwheel with revolving fixed side handle.jpg (11666 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D H h1 d C L
G35-80 80 33 29 24 17 55
G35-100 100 39 34 30 21 55
G35-125 125 44 37 36 24 66
G35-150 150 53 43 38 29 76
G35-175 175 56 46 40 32 86
G35-200 200 59 49 44 34 86
G35-250 250 65 56 60 38 92
d1 Bore size by request
