Solid Bridge Handle Female Thread

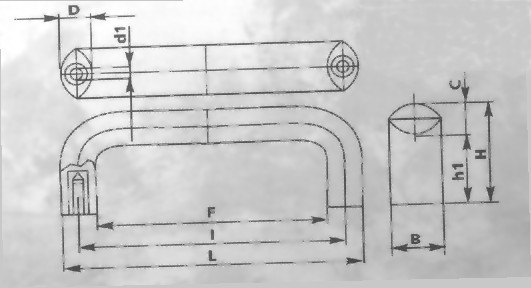

Solid bridge handle female thread design.jpg (29581 bytes)

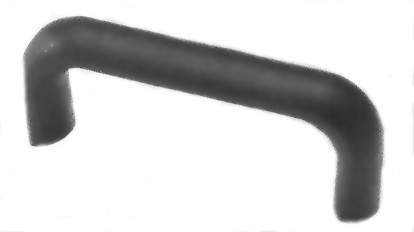

solid bridge handle female thread.jpg (8006 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. L I F B H h1 C D d1
H55-104 106.5 94 81.5 20 40.5 28 12.5 12.5 M5-6
H55-134 134 117 102 25 50 34 16 16 M5-6-8
H55-135 134 120 102 25 50 34 16 16 M5-6-8
H55-148 148 132 116 25 50 34 16 16 M5-6-8
H55-168 168 150 132 29 58 40 18 18 M6-8-10
H55-197 197 179 161 29 58 40 18 18 M8-10
