Scalloped Handwheel Female Thread

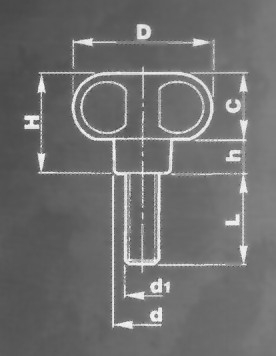

scalloped handwheel male thread design.jpg (16819 bytes)

 scalloped handwheel male thread.jpg (7083 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

Customised Options

*   Alternative Colours      *   Female Inserts & Male Studs In Stainless Steel      *   Male Studs With Spigot Ends

*   Partially Threaded Male Studs      *   Moulded Threads     *    Imperial Threads

SIZES AVAILABLE

PART NO. D H d d1 C h
F34-20 20 13 11 M4-5 -6 8 5
F34-25 25 15 12 M4-5-6-8 9 6
F34-30 30 22 15 M6-8 14 8
F34-40 40 28 16 M6-8-10 19 9
F34-50 50 32 20 M8-10-12 22 10
F34-60 60 38 23 M8-10-12-14 24 14
F34-80 80 41 31 M12-14-16 23 18
L thread length by request
