Revolving Handle Type 1

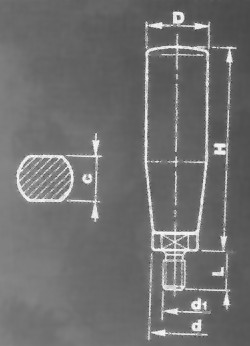

Revolving handle design.jpg (16291 bytes)

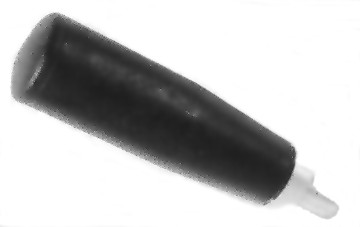

revolving handle.jpg (7895 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. H D d d1 L C
E42-40 55 20 12 M6 12 10
E42-50 67 23 18 M8 15 16
E42-60 77 25 18 M8-10 15 16
E42-70 87 27 20 M10-12 15 17
E42-80 97 29 20 M10-12 15 17

Click Here For Revolving Handle Type 2
