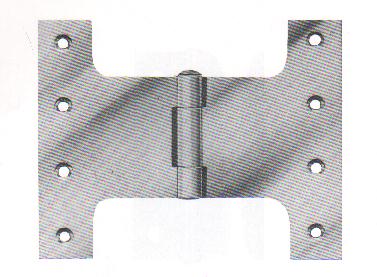

Parliment Hinges

Parliment Hinges

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Special Fasteners made to customer drawings
Technical Data & Available Sizes
Available In All Finishes :      Finishes List
Available In Materials:          Steel

SIZES AVAILABLE
SIZE
Length of Joint

36mm

 64mm
Width Fully Open Min. 120mm 157mm
Diameter of Pin Min. 7.1mm 8.0mm
Material Thickness Min. 2.0mm 2.65mm
Length of Leg 100mm 125mm
Distance Between Legs 75mm 3" 100mm 4"
Screw Holes Per Hinge 6 8
