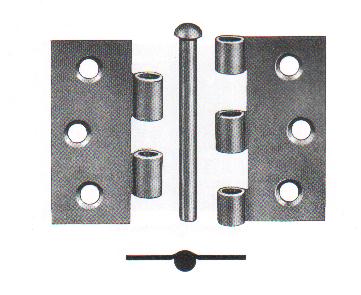

Loose Pin Strong Butt Hinge

Loose Pin Strong Butt Hinge

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Special Fasteners made to customer drawings
Technical Data & Available Sizes
Available In All Finishes :     Finishes List
Available In Materials:          Steel

SIZES AVAILABLE
SIZE
Length of Joint

75mm 3"

 100mm    4"
Width Fully Open Min. 60mm 73mm
Diameter of Pin Min. 5.3mm 6.0mm
Material Thickness Min. 2.36mm 2.65mm
Screw Holes Per Hinge 6 8
5
