Indexed Clamping Lever Push Button Female Thread

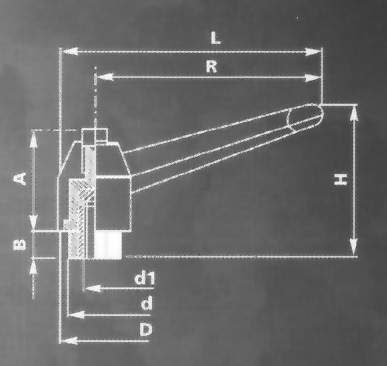

Indexed clamping lever female push button female thread design.jpg (22761 bytes)

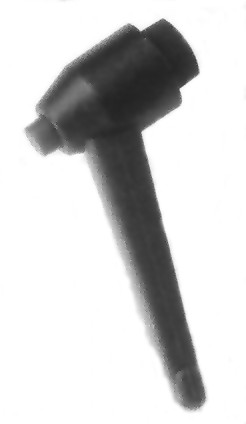

indexed clamping lever female push button female thread .jpg (8477 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

Customised Options

* Alternate Colours           * Female Inserts And Male Studs In Stainless Steel

* Imperial Threads           * Alternative Thread Lengths

SIZES AVAILABLE
PART NO. R L H D A d B d1
J13-43 43 52 35 18 20 12 6 M4-5-6
J13-65 65 77 46 23 27 15 8 M6-8
J13-83 83 97 57 28 33 19 10 M8-10-12
J13-104 104 120 70 33 39 24 11 M12-14-16
