Indexed Clamping Lever Male Thread

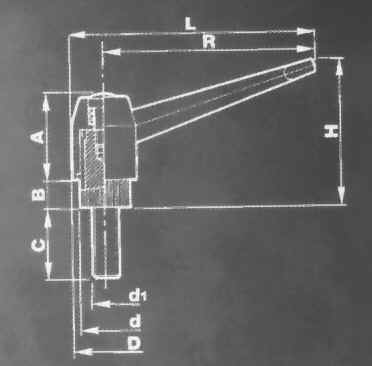

Indexed clamping lever male thread design.jpg (24388 bytes)

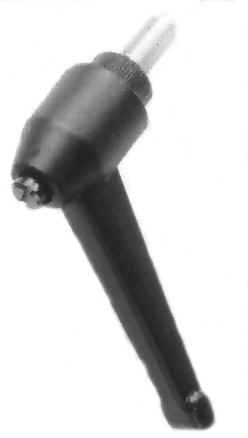

indexed clamping lever male thread.jpg (9395 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

Customised Options

* Alternate Colours           * Female Inserts And Male Studs In Stainless Steel

* Imperial Threads           * Alternative Thread Lengths

SIZES AVAILABLE

PART NO. R L H D A d B d1
I14-43 43 52 35 18 20 12 6 M4-5-6
I14-65 65 77 46 23 27 15 8 M6-8
I14-83 83 97 57 28 33 19 10 M8-10-12
I14104 104 120 70 33 39 24 11 M10-12-14-16
C Thread Length By Request
