Indexed Clamping Lever Female Thread

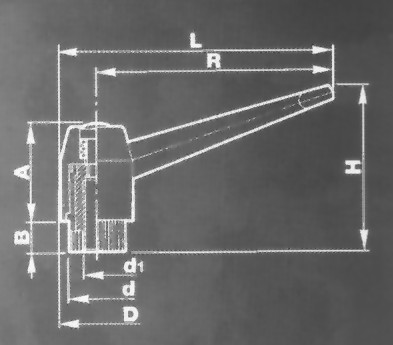

Indexed clamping lever female thread design.jpg (22798 bytes)

indexed clamping lever female thread.jpg (9578 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

Customised Options

* Alternate Colours           * Female Inserts And Male Studs In Stainless Steel

* Imperial Threads           * Alternative Thread Lengths

SIZES AVAILABLE
PART NO. R L H D A d B d1
I13-43 43 52 35 18 20 12 6 M4-5-6
I13-65 65 77 46 23 27 15 8 M6-8
I13-83 83 97 57 28 33 19 10 M8-10-12
I13-104 104 120 70 33 39 24 11 M10-12-14-16
