Grooved Pins

Grooved pins.jpg (17821 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

SIZES AVAILABLE

DIN 1471 (GP 1)

Grooveg pin DIN 1471.jpg (21653 bytes)

Full length taper grooves used to fix two or more components together, but with less insertion than DIN 1473.




DIN 1472 GP 2)

Grooved pin DIN1472.jpg (24976 bytes)

Half length taper grooves used where part of the assembly must be a free fit




DIN 1473 (GP 3)

grooved pin din1473.jpg (22279 bytes)

Full-length parallel grooves used to fix two or more components together with maximum rigity




DIN 1474 (GP 4)

grooved pin din1474.jpg (27280 bytes)

Half-length reverse taper grooves used where the ungrooved portion acts as a stop or handle

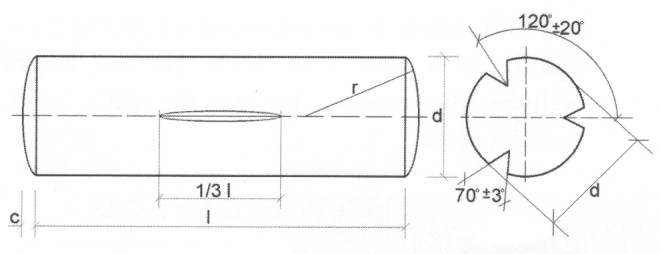

DIN 1475 (GP 8)

Grooved pin Din1475.jpg (23990 bytes)

Third length centre grooves used on hinges or clevises where the two ends must act as pivots
