Eyebolts                   Eyebolts                   Eyebolts

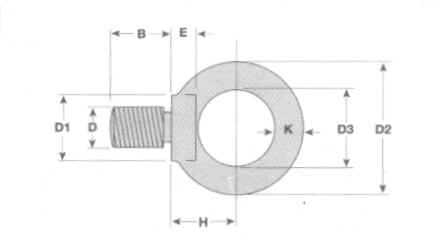

eyebolts to din 580.jpg (10483 bytes)

Fastenright Limited Your Uk Source For eyebolts & Fasteners.



Back To Main Eyebolts Menu

Technical Data & Available Sizes

SIZES AVAILABLE


SWL Tonnes

Dimensions

Weight kg's/each

D mm

D1 mm

D2 mm

D3 mm

B mm

E mm

H mm

K mm

0.14

M8

20

36

20

15

6

18

8

0.08

0.23

M10

25

45

25

18

8

22

10

0.11

0.34

M12

30

54

30

22

10

26

12

0.18

0.70

M16

35

63

35

28

12

30

14

0.28

1.20

M20

40

72

40

30

12

35

16

0.45

1.80

M24

50

90

50

38

16

45

20

0.87

3.60

M30

60

108

60

45

25

55

24

1.21
