Die Cast Indexed Clamping Lever Male Thread

die cast indexed clamping lever male thread design.jpg (21879 bytes)

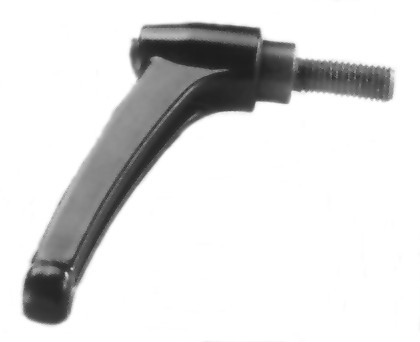

die cast indexed clamping lever male thread.jpg (11170 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

Customised Options

* Alternate Colours           * Female Inserts And Male Studs In Stainless Steel

* Imperial Threads           * Alternative Thread Lengths

SIZES AVAILABLE
PART NO. R L H A B D d d1
K14-43 43 50 30 24 5 14 14 M4-5-6
K14-65 65 75 45 27 7 19 19 M6-8-10
K14-80 80 91 56 33.5 8.5 22 22 M8-10-12
K14-94 94 107 65 39 10 26 26 M12-14-16
K14-108 108 123 77 41.5 12 30 22 M14-16-18
C Thread Lenght By Request
