Die Cast Indexed Clamping Lever Female Thread

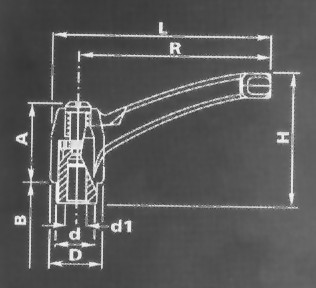

Die cast indexed clamping lever female thread design.jpg (19419 bytes)

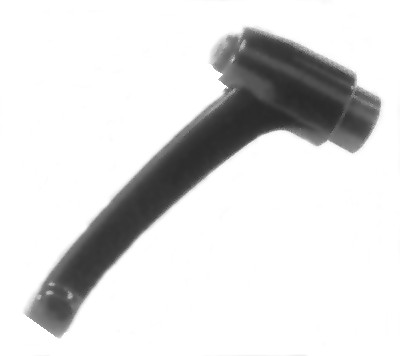

die cast indexed clamping lever female thread.jpg (9517 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

Customised Options

* Alternate Colours           * Female Inserts And Male Studs In Stainless Steel

* Imperial Threads           * Alternative Thread Lengths

SIZES AVAILABLE
PART NO. R L H A B D d d1
K13-43 43 50 30 24 5 14 10 M4-5-6
K13-65 65 75 45 27 7 19 14 M6-8-10
K13-80 80 91 56 33.5 8.5 22 16 M8-10-12
K13-94 94 107 65 39 10 26 20 M12-14-16
K13-108 108 123 77 41.5 12 30 22 M14-16-18
