Crank handle with folding handle female thread

Crank Handle With Folding Handle Female Thread

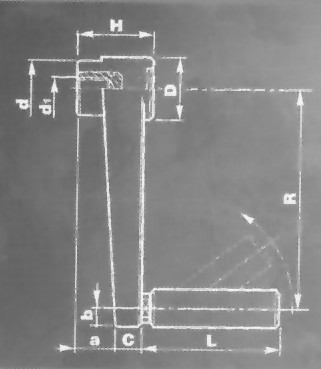

Crank handle with folding handle female thread design.jpg (19880 bytes)

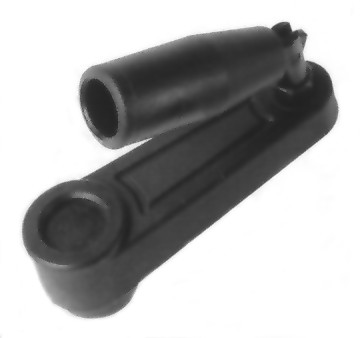

crank handle with folding handle female thread.jpg (11426 bytes)

Fastenright Limited Your Uk Source For Crank Handle With Folding Handle Female Thread & Fasteners.

SIZES AVAILABLE

PART NO.	R	H	d	D	d1	C	a	L	b
H32-65	65	29	22	27	M8-10-12	13	17	56	10
H32-80	80	33	26	31	M8-10-12	13	18	56	11
H32-110	110	39	29	34	M10-12-14	14	25	76	12
H32-140	140	49	35	43	M12-14-16	16	35	86	13
H32-185	185	55	40	47	M12-14-16	15	40	96	14
This handle is aslo available with plain bore sizes
