Crank Handle Female Thread     Crank Handle Female Thread

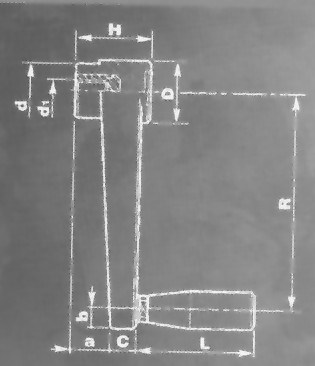

Crank handle female thread design.jpg (19181 bytes)

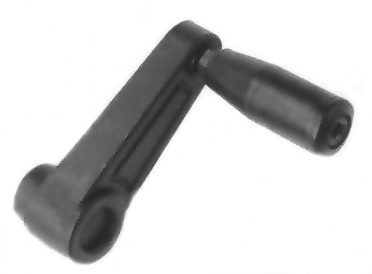

crank handle female thread.jpg (9185 bytes)

Fastenright Limited Your Uk Source For Crank Handle Female Thread & Fasteners.



Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. R H d D d1 C a L b
H31-65 65 29 22 27 M8-10-12 13 17 56 10
H31-80 80 33 26 31 M8-10-12 13 18 56 11
H31-110 110 39 29 34 M10-12-14 14 25 66 12
H31-140 140 49 35 43 M12-14-16 16 35 76 13
H31-185 185 55 40 47 M12-14-16 15 40 86 14
This handle is aslo available with plain bore sizes
