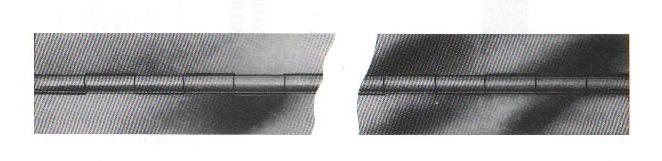

Continuous Hinge Undrilled

Continuous Hinge Undrilled

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Special Fasteners made to customer drawings
Technical Data & Available Sizes
Available In All Finishes :      Finishes List
Available In Materials:          BRASS, STAINLESS STEEL and ALUMINIUM

SIZES AVAILABLE
SIZE
Width Fully Open. (Inches)

3/4"

 1" 1.1/4" 1.1/2" 1.3/4 2" 2.1/4" 2.1/2" 3" 4"
Leaf Size (SWG) 20 20 20 18 18 18 18 18 16 16
Diameter of Pin. (SWG) 14 14 14 10 10 10 10 10 7 7
Knuckle Length (Inches) 1/2" 1/2" 1/2" 1" 1" 1" 1" 1" 2" 1"


OTHER SIZES AVAILABLE
23
