Compression Action Panel Latches     Compression Action Panel Latches

Compression action panel latches.jpg (27324 bytes)

Fastenright Limited Your Uk Source For Compression Action Panel Latches & Fasteners.



Technical Data & Available Sizes

SIZES AVAILABLE

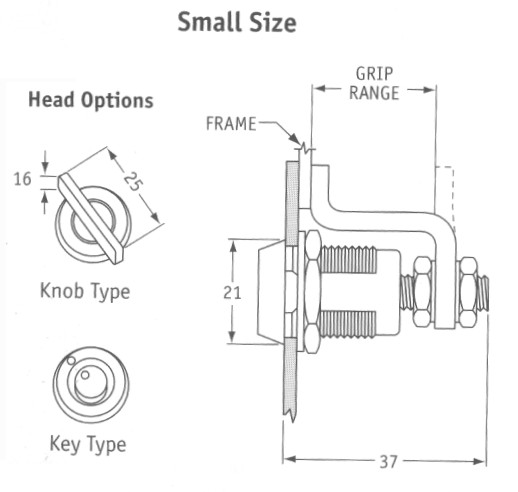

SMALL SIZE

compression action panel latches small design.jpg (30410 bytes)

PART NO GRIP RANGE MAX PANEL THICKNESS STD PACK QTY
KNOB TYPE KEY TYPE MIN MAX MM QTY
FR500086 FR500078 9.5 12.7 13.0 1
FR500087 FR500079 12.7 15.9 13.0 1
FR500088 FR500080 15.9 19.0 13.0 1
FR500089 FR500081 19.0 22.2 13.0 1
SMALL SIZE - BLACK

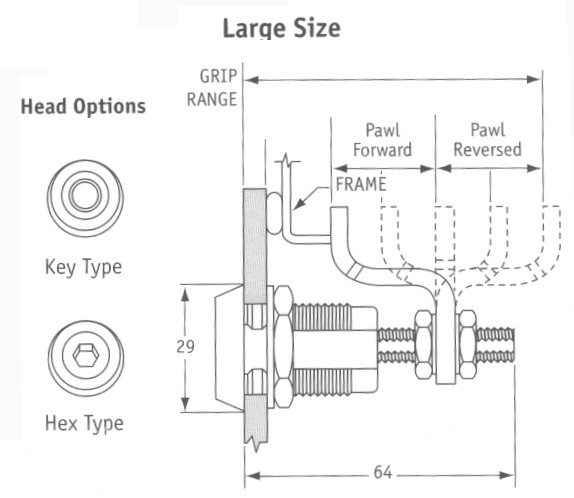

LARGE SIZE

compression action panel latches large design.jpg (39867 bytes)

PART NO GRIP RANGE (MM) MAX PANEL THICKNESS STANDARD PACK QTY
8MM HEX TYPE    KEY   TYPE PAWL FORWARD PAWL REVERSE MM QTY
MIN MAX MIN MAX
FR500093 FR500099 11.4 27.2 66.3 76.2 18.0 1
FR500094 FR500100 25.4 41.1 52.6 68.3 18.0 1
FR500095 FR500100 38.9 54.6 38.9 54.6 18.0 1

LARGE SIZE -BLACK

PART NO GRIP RANGE (MM) STD PACK QTY
8MM HEX TYPE          KEY          TYPE PAWL FORWARD PAWL REVERSE QTY
MIN MAX MIN MAX
FR500096 FR500102 11.4 27.2 66.3 76.2 1
FR500097 FR500103 25.4 41.1 52.6 68.3 1
FR500098 FR500104 38.9 54.6 38.9 54.6 1
LARGE SIZE - SILVER

compression action panel key.jpg (4602 bytes)
KEY FOR SMALL SIZE
PART NO STD PACK QTY
FR500092 1

KEY FOR LARGE SIZE
PART NO STD PACK QTY
FR500105 1

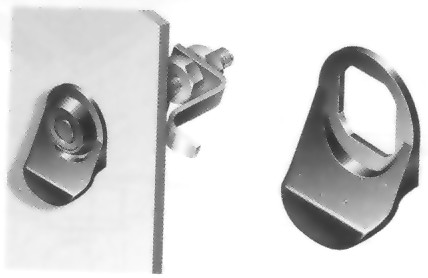

OPTIONAL PULL TAB

compression action panel optional pull tab.jpg (17746 bytes)

PULL TAB - LARGE SIZE ONLY
PART NO STD PACK SIZE QTY
FR500106 1
