Collared Eyebolts     Collared Eyebolts     Collared Eyebolts

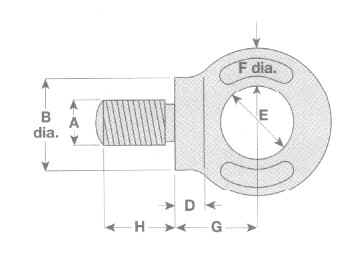

collared eyebolts bs4278.jpg (14529 bytes)

Fastenright Limited Your Uk Source For Collared Eyebolts & Fasteners.



Back To Main Eyebolts Menu

Technical Data & Available Sizes

SIZES AVAILABLE



Vertical SWL Tonnes

Dimensions

     A     Inches

     B       mm

     D     mm

E mm

F mm

G mm

H mm

Weight kg's/each

0.10

M6

22

7

15

9

20

18

0.07

0.15

M8

22

7

15

9

20

18

0.07

0.33

M10

22

7

15

9

20

18

0.07

0.40

M12

22

7

15

9

20

18

0.07

0.80

M16

29

10

20

12

26

23

0.16

1.00

M18

36

12

24

14

32

28

0.28

1.60

M20

40

14

27

16

36

32

0.44

1.60

M22

45

15

30

18

40

35

0.56

2.50

M24

52

17

35

21

46

40

0.84

4.00

M30

65

22

44

26

58

51

1.66

5.00

M33

72

24

48

28

64

56

2.24

6.30

M36

81

27

54

32

72

63

3.17

6.30

M39

90

30

60

36

80

70

3.92

8.00

M42

101

34

68

40

90

79

6.00

8.00

M45

101

34

68

40

90

79

6.00

10.00

M48

101

34

68

40

90

79

6.00

12.50

M52

115

38

76

46

102

89

9.00
