Bridge Handle Female Thread

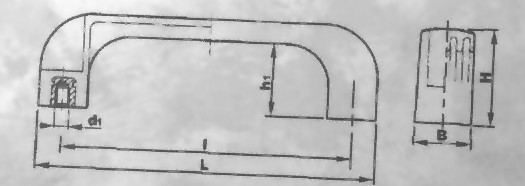

Bridge handle female thread design.jpg (20081 bytes)

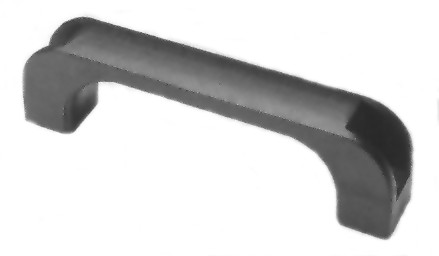

bridge handle female thread.jpg (9360 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. L I B H h1 d1
H53-110 110 94 21 37 29 M5-6
H53-140 140 117 24 40 30 M5-6
H53-139 139 120 24 40 30 M5-6
H53-151 151 132 26 43 33 M5-6-8
H53-200 200 180 28 50 39 M8
H53-260 260 235 32 53 41 M10
