Ball Knobs Female Thread - Metal Insert

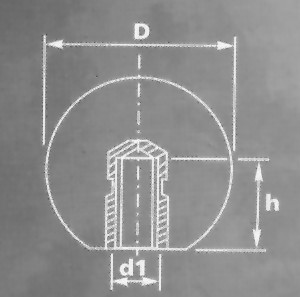

ball knob female thread metal insert design.jpg (16038 bytes)

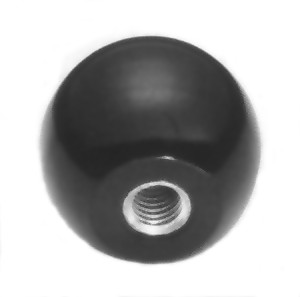

ball knob female thread metal insert.jpg (7760 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.



Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D d1 H
J1 16 M4 (BRASS) 7.5
J2 20 M4-5-6 10.5
J3 25 M4-5-6-8 13.5
J4 32 M4-5-6-8 16
J6 40 M4-6-8-10-12 21
J7 45 M10-12 21
J8 50 M6-8-10-12 25
J9 60 M8-10-12-16 30
