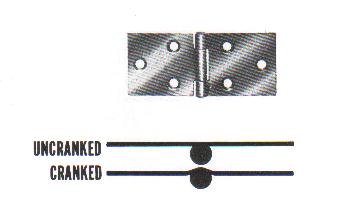

Backflap Hinge

Backflap Hinge

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Special Fasteners made to customer drawings
Technical Data & Available Sizes
Available In All Finishes :     Finishes List
Available InMaterials:          Steel

SIZES AVAILABLE
SIZE
Length of Joint

20mm 3/4"

 25mm  1" 30mm 1.1/4" 40mm 1.1/2 45mm 1.3/4 50mm 2" 65mm 2.1/2" 75mm 3"
Width Fully Open Min. 70mm 72mm 81mm 88mm 98mm 106mm 150mm 165mm
Diameter of Pin Min. 3.0mm 3.0mm 3.55mm 3.55mm 4.0mm 4.0mm 6.3mm 7.1mm
Material Thickness Min. 1.4mm 1.6mm 1.6mm 1.6mm 1.8mm 1.8mm 2.24mm 2.65mm
Screw Holes Per Hinge 4 6 6 6 6 6 6 6
14
