6 Point Handwheel Through Thread

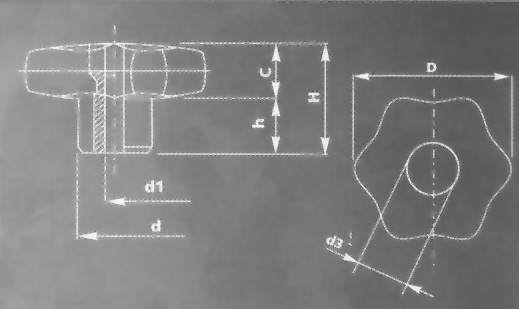

6 point handwheel through thread design.jpg (24021 bytes)

 6 point handwheel through thread.jpg (7294 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

Customised Options

*   Alternative Colours      *   Female Inserts & Male Studs In Stainless Steel      *   Male Studs With Spigot Ends

*   Partially Threaded Male Studs      *   Moulded Threads     *    Imperial Threads

SIZES AVAILABLE

PART NO. D H d d1 d3 C h
J37-30 30 20 15 M5-6-8-10 11.5 10 10
J37-40 40 24 17 M6-8-10 12 11.5 12.5
J37-50 50 28.5 20 M8-10-12 14 14 14.5
J37-60 60 33 24 M10-12-14 16 15 18
