6 Point Handwheel Female Thread

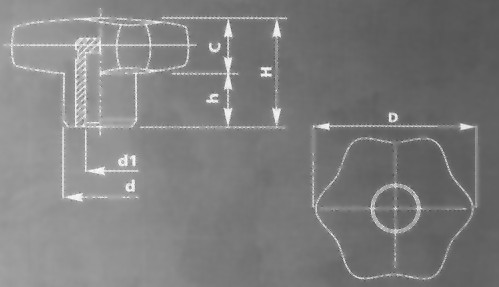

6 point handwheel female thread design.jpg (20024 bytes)

 6 point handwheel female thread.jpg (7765 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

Customised Options

*   Alternative Colours      *   Female Inserts & Male Studs In Stainless Steel      *   Male Studs With Spigot Ends

*   Partially Threaded Male Studs      *   Moulded Threads     *    Imperial Threads

SIZES AVAILABLE

PART NO. D H d d1 C h
J35-30 30 20 15 M5-6-8-10 10 10
J35-40 40 24 17 M6-8-10 11.5 12.5
J35-50 50 28.5 20 M8-10-12 14 14.5
J35-60 60 33 24 M10-12-14 15 18

Plain bores are also available
