30mm Diameter Tubular Bridge Handle Plain Hole

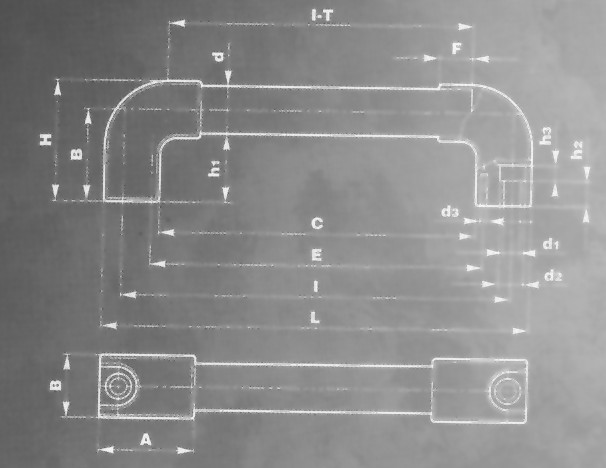

30mm tubular bridge handle plain hole design.jpg (39124 bytes)

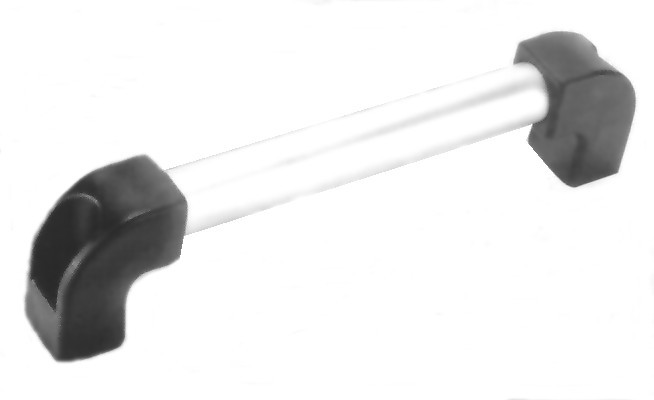

30mm tubular bridge handle plain hole.jpg (13224 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. I L d d1 d2 d3 A B C E F H h h1 h2 h3 T
H58-200 200 224 30 10.5 16 4 60 40 154 164 21 77 58 43 17 10 54
H58-250 250 274 30 10.5 16 4 60 40 204 214 21 77 58 43 17 10 54
H58-300 300 324 30 10.5 16 4 60 40 254 264 21 77 58 43 17 10 54
H58-350 350 374 30 10.5 16 4 60 40 304 314 21 77 58 43 17 10 54
H58-400 400 424 30 10.5 16 4 60 40 354 364 21 77 58 43 17 10 54
H58-500 500 524 30 10.5 16 4 60 40 454 464 21 77 58 43 17 10 54
H58-600 600 624 30 10.5 16 4 60 40 554 564 21 77 58 43 17 10 54
H58-700 700 724 30 10.5 16 4 60 40 654 664 21 77 58 43 17 10 54
