3 Point Handwheel Through Thread

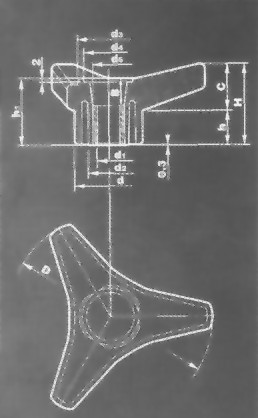

3 point handwheel through thread design.jpg (21302 bytes)

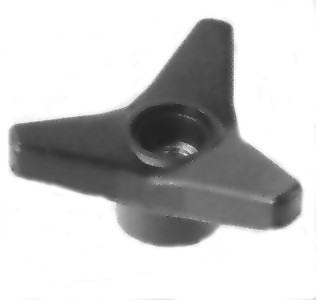

 3 point handwheel through thread.jpg (8403 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

Customised Options

*   Alternative Colours      *   Female Inserts & Male Studs In Stainless Steel      *   Male Studs With Spigot Ends

*   Partially Threaded Male Studs      *   Moulded Threads     *    Imperial Threads

SIZES AVAILABLE

PART NO. D d d1 d2 d3 d4 d5 h h1 H C B
F22-45 45 16 M6-8-10 - 14.5 10 10 10 17.5 21 11 5
F22-65 65 22 M8-10-12 - 21 15 12 12 23 28 16 8.5
F22-85 85 30 M8-10-12 18 27 20 14 15 30 36 21 12
F22-105 105 35 M10-12-14 20 32 24 17 19 37 45 26 16
F22-125 125 42 M12-14-16-18 26 40 27 24 22.5 44 53 30.5 12
