3 Point Handwheel Female Thread

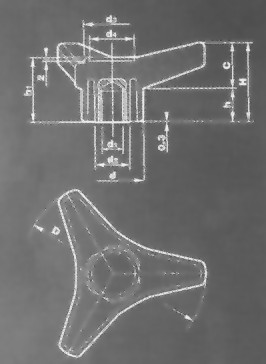

3 point handwheel female thread design.jpg (18167 bytes)

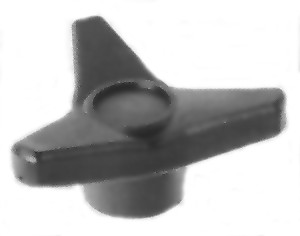

 3 point handwheel female thread.jpg (6984 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

Customised Options

*   Alternative Colours      *   Female Inserts & Male Studs In Stainless Steel      *   Male Studs With Spigot Ends

*   Partially Threaded Male Studs      *   Moulded Threads     *    Imperial Threads

SIZES AVAILABLE

PART NO. D d d1 d2 d3 d4 h h1 H C
F21-45 45 16 M6-8-10 - 14.5 10 10 17.5 21 11
F21-65 65 22 M8-10-12 - 21 15 12 23 28 16
F21-85 85 30 M8-10-12 18 27 20 15 30 36 21
F21-105 105 35 M10-12-14 20 32 24 19 37 45 26
F21-125 125 42 M12-14-16-18 26 40 27 22.5 44 53 30.5

Plain bores are also available
