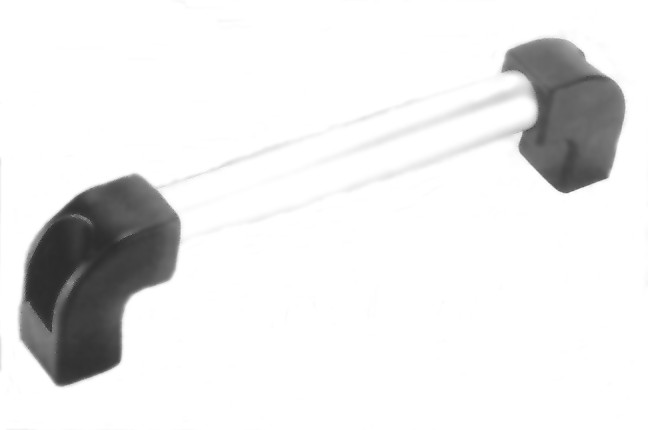

20mm Diameter Tubular Bridge Handle Plain Hole

20mm tubular bridge handle plain hole design.jpg (35981 bytes)

20mm tubular bridge handle plain hole.jpg (12911 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

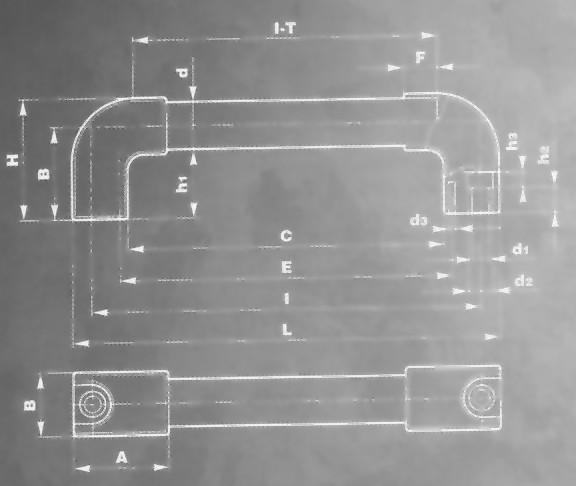

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. I L d d1 d2 d3 A B C E F H h h1 h2 h3 T
H57-200 220 200 20 8.5 14 4 50 30 162 174 17 62 48 33 11.5 9 46
H57-250 270 250 20 8.5 14 4 50 30 212 224 17 62 48 33 11.5 9 46
H57-300 320 300 20 8.5 14 4 50 30 262 274 17 62 48 33 11.5 9 46
H57-350 370 350 20 8.5 14 4 50 30 312 324 17 62 48 33 11.5 9 46
H57-400 420 400 20 8.5 14 4 50 30 362 374 17 62 48 33 11.5 9 46
H57-500 520 500 20 8.5 14 4 50 30 462 474 17 62 48 33 11.5 9 46
H57-600 620 600 20 8.5 14 4 50 30 562 574 17 62 48 33 11.5 9 46
H57-700 720 700 20 8.5 14 4 50 30 662 674 17 62 48 33 11.5 9 46
