2 Spoke Handwheel with Revolving Folding Side Handle

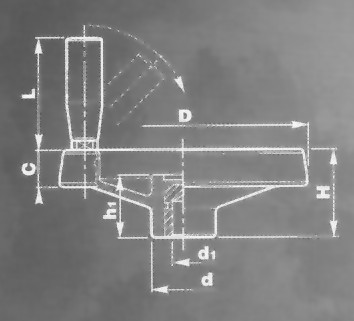

2 spoke handwheel with revolving folding side handle design.jpg (18453 bytes)

2 spoke handwheel with revolving folding side handle.jpg (13100 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D H h1 d L C
G56-80 80 34 26 24 56 14
G56-100 100 42 33 28 56 16
G56-130 130 50 35 32 76 20
G56-160 160 56 40 40 76 24
G56-200 200 61 39 50 76 28
G56-250 250 71 47 56 98 32
G56-350 350 80 50 68 98 37
d1 Bore size by request
