2 Spoke Handwheel with Revolving Foldaway Side Handle

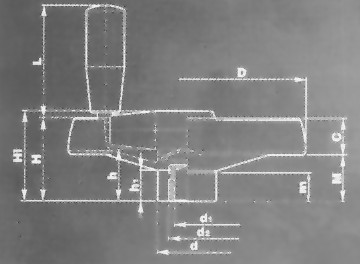

2 spoke handwheel with revolving foldaway side handle design.jpg (18576 bytes)

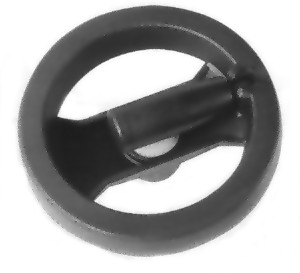

2 spoke handwheel with revolving foldaway side handle.jpg (12813 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D d d2 H h H1 C M m L
G55-130 130 31 24 52 33,5 59 23 32 32 60
G55-160 160 40 24 52 35 63 24 31 19 70
G55-350 350 68 40 80 50 - 37 43 19 90
d1 Bore size by request
