2 Spoke Handwheel with Revolving Fixed Side Handle

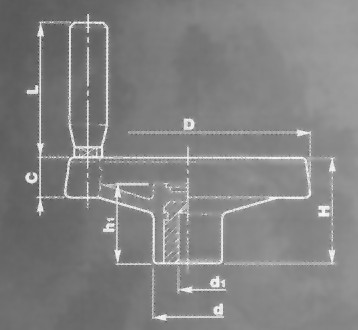

2 spoke handwheel with revolving fixed side handle design.jpg (18381 bytes)

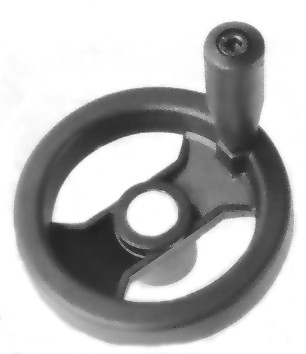

2 spoke handwheel with revolving fixed side handle.jpg (15420 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

SIZES AVAILABLE
PART NO. D H h1 C d L
G54-80 80 34 26 14 24 56
G54-100 100 42 33 16 28 56
G54-130 130 50 35 20 32 66
G54-160 160 56 40 24 40 76
G54-200 200 61 39 28 50 76
G54-250 250 71 47 32 56 92
G54-350 350 80 50 37 68 92
d1 Bore size by request
