10 Point Handwheel Male Thread

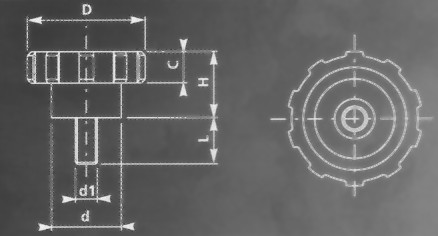

10 point handwheel male thread design

 10 point handwheel male thread

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

Customised Options

*   Alternative Colours      *   Female Inserts & Male Studs In Stainless Steel      *   Male Studs With Spigot Ends

*   Partially Threaded Male Studs      *   Moulded Threads     *    Imperial Threads

SIZES AVAILABLE

PART NO. D H d d1 C
N55 32 18 19 M4-5-6-8 8.5
L14 44 18.5 19 M5-6-8 10

L thread length by request.  Imperial thread sizes are also available subject to minimum order quantity
